ISO Tank Container

JWI CO2 and Cryogenic 20’ ISO tank containers include a high quality vacuum super insulation and are supplied complete with all pipe work, valves, safety devices, liquid level indicator and pressure gauge. Transfer pump and filling hose are optional. Inner vessels are made of stainless steel and are designed for transportation by road, ship and rail of carbon dioxide, liquid oxygen, nitrogen and argon.

All ISO tank containers include:

inner vessel and all pipe work made of stainless steel
all valving necessary for proper operation
all necessary safety equipment

TECHNICAL SPECIFICATIONS:

Type	20’000 l CO2 / cryogenic 20′ ISO tank container
Gross volume (l):	19’650
Payload (kg) LCO2:	19’600
Payload (kg) LIN:	14’950
Payload (kg) LOX:	21’240
Payload (kg) LAR:	26’130

Inner vessel
Material:	Stainless steel type 1.4311/EN10028-7 or equivalent
Max. allowed working pressure:	22 bar g
Design codes and regulations:	ADR, RID, IMDG (UN-T75), UIC
Pressure vessel code:	AD 2000-Regelwerk

Outer vessel
Material:	Carbon steel
Design pressure:	-1 bar g (full vacuum)

Isolation
Type:	Vacuum + Multi Layer Insulation

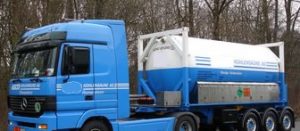

ISO tank container truck
